Semi-weld Plate heat exchanger

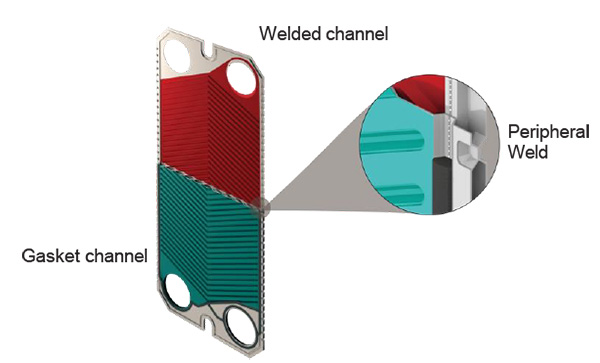

What is Semi-weld PHE?
The Semi-weld Plate heat exchanger plates are welded by laser. the laser welding means that metal is melted by a laser beam from a high power laser. The charge is protected by irert gas Additional welding material is not required.

Applications
•    Chemicals
•    Energy and Utilities
•    Food & Beverages
•    HVAC& Refrigeration
•    Marine and Transportation
•    Mining
•    Pulp and Paper
•    Steel
•    Water and Waste treatment

Benefits
•    High heat transfer efficiency: due to their large surface area and turbulent flow paths.
•    Low risk of leakage: The fully welded channels reduce the risk of leakage and cross-contamination between different fluids.
•    Easy maintenance: Semi-welded plate heat exchangers can be easily disassembled and cleaned, allowing for easy maintenance and reduced downtime.
•    Versatile: Semi-welded plate heat exchangers can be used in a wide range of applications, including refrigeration and cooling, heating, and HVAC systems.

Features
• Clip-on gasket

• Lifting lug

• Lining

• Lock washer
• Tightening bolt cover

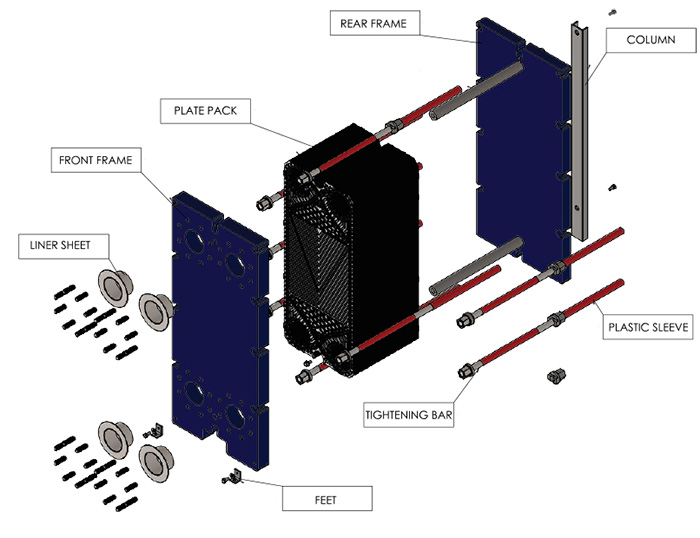

Semi-weld PHE construction

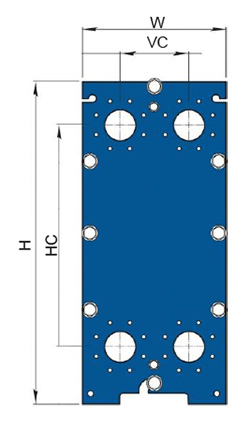

			Technical Data
			Material
			Plates	304/ 316L stainless, Ti
			Field Gasket	NBR, EPDM, FKM
			Ring Gasket	NBR, EPDM, FKM
			Flange connections	Carbon steel, Metal lined: Stainless, Ti
			Frame plate	Carbon steel, epoxy painted

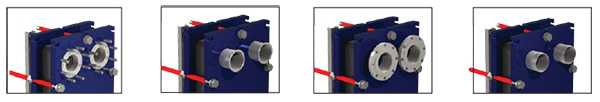

			Connections Available
