| Model Details | |

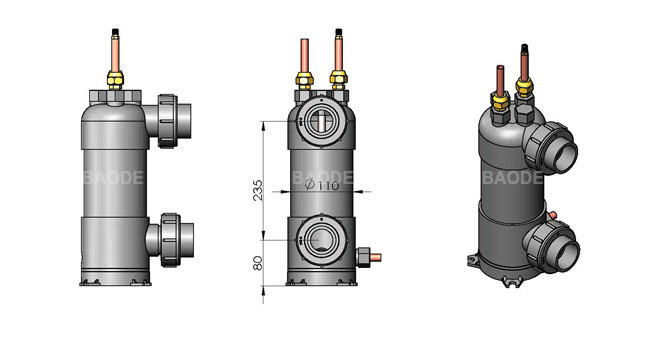

| Model | PVX45 |
| Normal Capacity | 5 KW |
| Water Flow (M3/h) | 2 |
| Shell Material | PVC |
| Tubes Material | Ti |
| Connection Type | Thread |
| Water side Connection Size (Pool) | 2'' |
| Ti Tube side connection (Freon) | 12.7/ 19 |
| Approval | UL,ISO9001, ISO14001 |
| Shell Side Max Pressure (bar) | 8 |
| Tube Side Max Pressure (bar) | 45 |
| Max Temperature ℃ | 100 |
| Min Temperature ℃ | -20 |
| Packing | Individual box / Polywood box |
