| Model Details | |

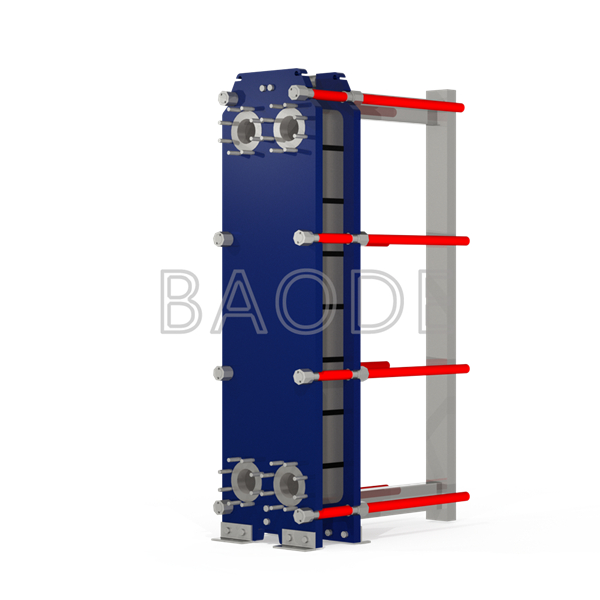

| Model | LB100 |
| Flow Patten | Parallel |
| Channel Depth | 2 mm |
| Max Flowrate Kg/s | 50 |
| Plate Material | SS / TI / SMO / Hastelloy |
| Plate Thickness mm | 0.5/ 0.6 / 0.7 |
| Gasket Material | NBR/ EPDM / VITON |
| Connction Type | Flange, Thread, Clamp, Studs |

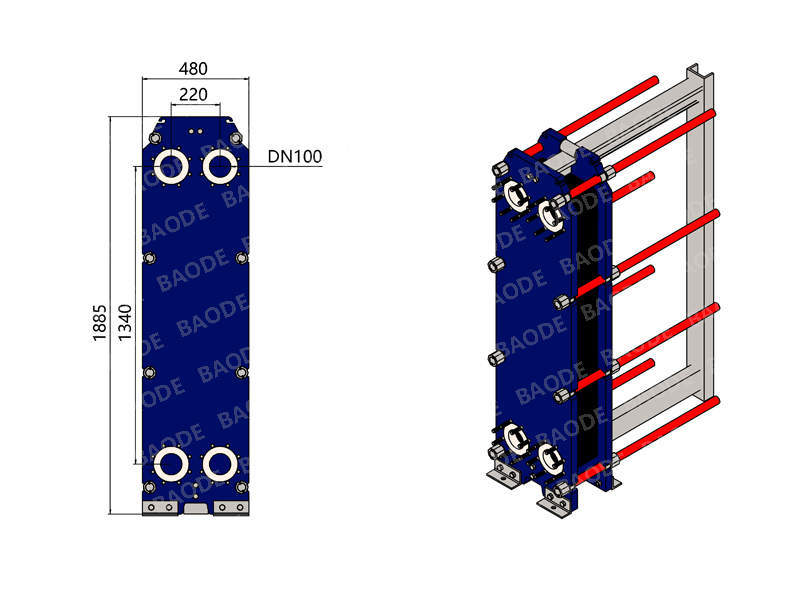

| Connction Size | DN100 |
| Channel Angel | D 120° / X 60° |
| Approval | UL, CE, BV, DNV, GL,ISO9001, ISO14001 |
| Frame Mateial | Carbon steel with pait |
| Max Pressure (bar) | 10/16 |
| Max Temp (C°) | 110/140/180 (depends on gasket material) |
| Min Temp (C°) | 0 |
| Packing | Polywood box |
 |
|
